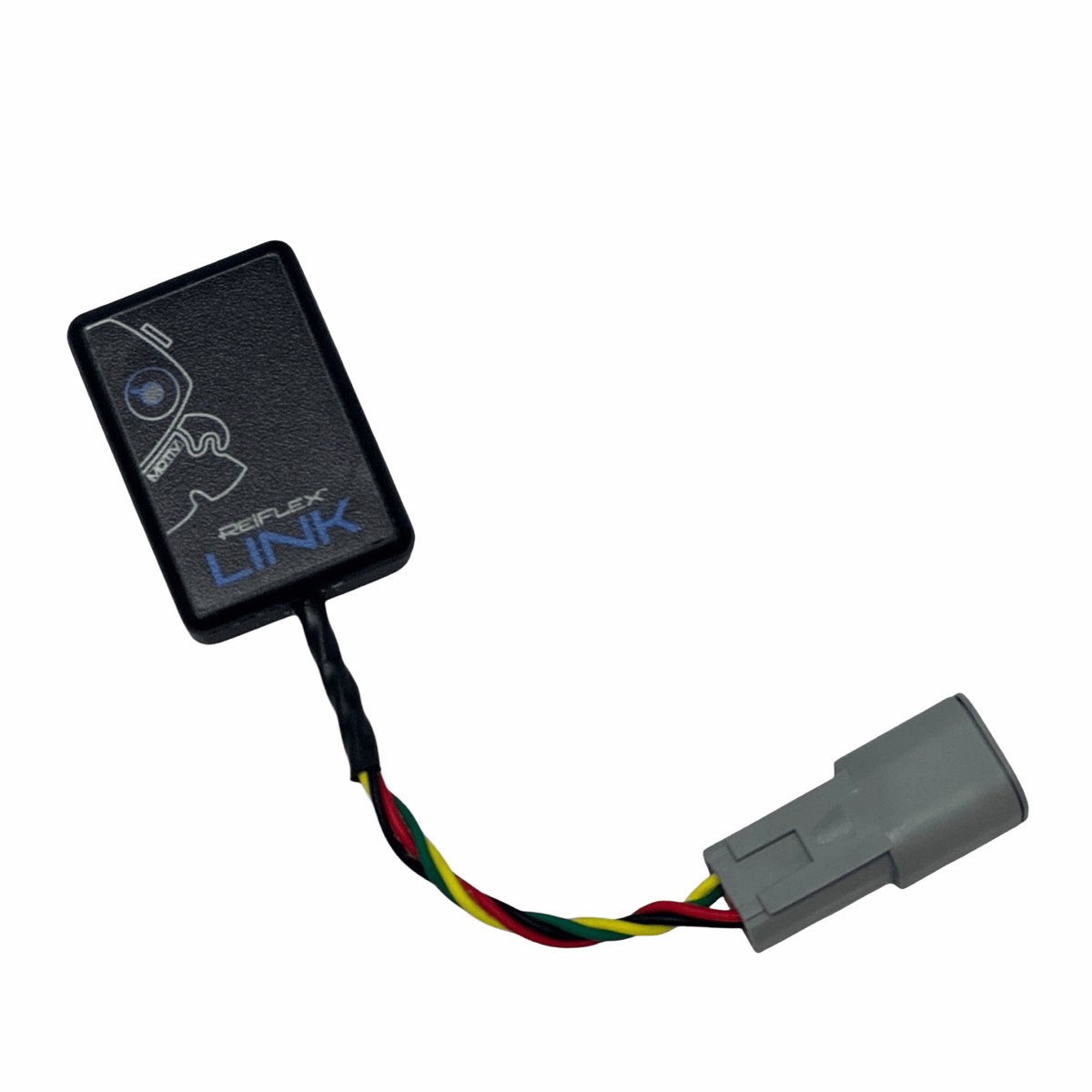

ReFlex+ Link Control Unit

MOTIV Link for ReFlex+: Wireless Control, Monitoring, and Updates

Experience true wireless with theMOTIV Linkfor theReFlex+. Access real-time data, monitor system health, review diagnostics, and update firmware directly via theMOTIV APP, all over Bluetooth (BLE). As the MOTIV APP continues to evolve, expect ongoing feature enhancements and expanded functionality designed to push the boundaries of engine management integration.

Seamless Integration with ReFlex+

The MOTIV Link module integrates BLE connectivity in a compact, easy-to-install solution. Installation onto any existing ReFlex+ controller can be completed in just minutes using one of our dedicated harness solutions:

• MOTIV Main Injector Patch Harness & Universal Flying Lead We have produced a clean, simple patch harness designed to connect directly between the existing 8-pin connector on the main harness and the mating 8-pin connector on the flying lead. This harness seamlessly connects all necessary signals to theMOTIV Linkwith minimal effort.
• Various Plug-and-Play Harnesses We have designed a harness to tap into 4 wires near the main connector at the ReFlex+ that goes directly into a connector for theMOTIV Link. Harness makers in the future will likely just add the 4-pin connector that will plug directly into the Link for ease of install.

Real-Time Data and Diagnostics via MOTIV APP

Using your iOS or Android devicephone or tabletyou can now wirelessly monitor critical ReFlex+ system data in real time, including but not limited to:

• Injector Status
• Engine Status
• CAN Bus Activity
• Crank and Cam Signal Status
• MAP Sensor Readings
• Firmware Version
• Auxiliary Outputs (Status and DC)
• Ethanol Content
• Fuel Pressure
• Boost Pressure
• And much more

In addition to live monitoring, firmware updates can now be performed over-the-air (OTA) through the MOTIV APP, eliminating the need for USB connections or physical access to the ReFlex+ module. Simply launch the app, check for updates, and apply new firmwareeffortlessly.

Future-Proof by Design

The MOTIV APP is under continuous development, with new features and capabilities being added regularly. Our roadmap includes advanced monitoring, control, and diagnostic tools that will continue to expand the ReFlex+ ecosystem.
