ReFlex+ Visconti S58/B58 Integration Harness

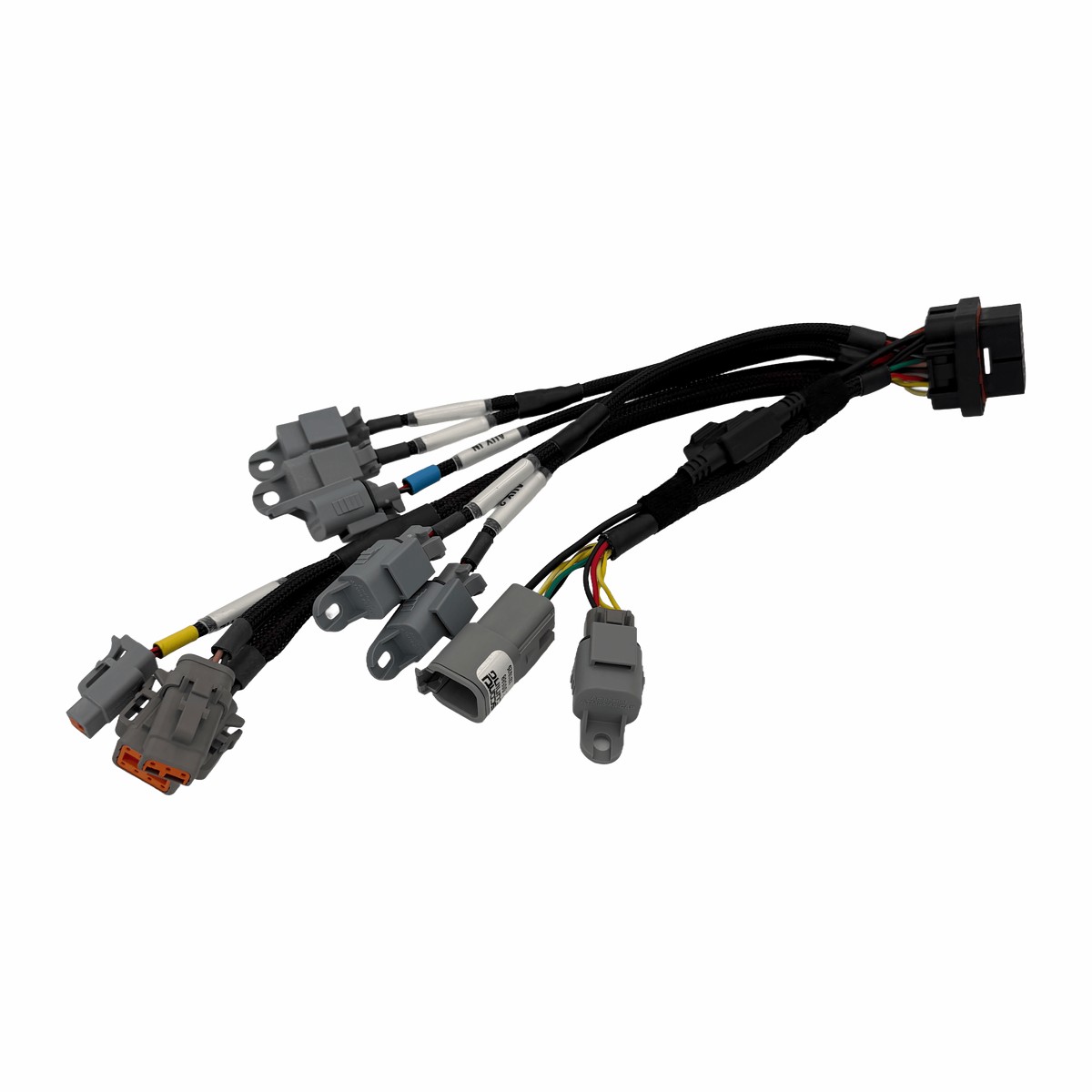

The Visconti S58/B58 Integration Harness is the primary harness from our ReFlex+ kit. It is designed to integrate the Flex Fuel Sub Harness, Injector Harness, and Engine Harness into the ReFlex+ controller.

It provides a clean and reliable connection point for all required I O expansion when running port injection, with no splicing or modification of factory wiring.

This version of the harness is designed for the ReFlex+ to be mounted in the engine bay rather than inside the vehicle like our original version. It is compatible with all current versions of our Injector Harness and Engine Harness. Early Flex Fuel Sub Harnesses will require a DTM connector update.

Connector Layout:

• 6 Pin DTM
  Flex Fuel Sub Harness
  Power, Ground, Ethanol, CAN H, CAN L
• 2 Pin DTM
  Fuel Pressure
  Power, Signal Input
• 2 Pin DTM
  Coolant or Back Pressure
  Power, Signal Input
• 8 Pin DTM
  Injector Harness
• 3 Pin DTM
  Engine Harness
  Cam, Crank, Boost or Third Input (MHD+)
• 2 Pin DTM
  AUX 1
  Power, PWM
• 2 Pin DTM
  AUX 2
  Power, PWM
• 2 Pin DTM
  AUX 3
  Power, PWM
• 2 Pin DTM
  AUX 4
  Power, PWM

Please reach out with any questions before purchasing.

Proudly handmade in the USA with automotive-grade TXL XLPE insulated wire and assembled in an ISO 9001 Certified Facility.
