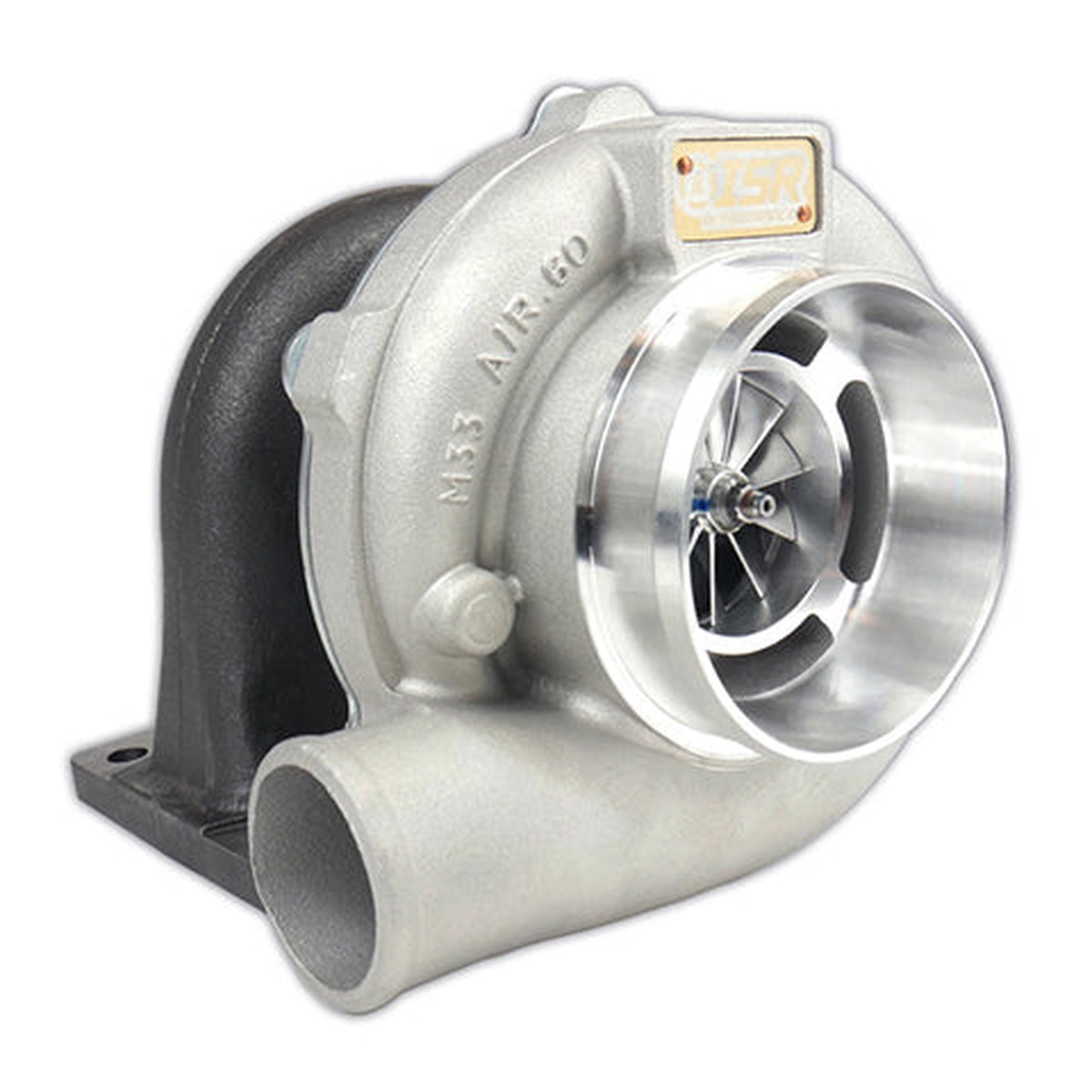

RSX3576 Turbo by ISR Performance

ISR has released their new larger frame turbo upgrade options for those looking for top mounted turbos on their SR/KA/RB/JZ engines

The RSX3576 turbo feature dual ball bearing, billet compressor wheel and ported shroud compressor housings. All ISR turbos feature dual step gap rings and are balanced to within OEM specifications. Get big power and reliability and a fraction of the cost.

Please Note:REQUIRES OIL RESTRICTOR .036″ -.040″.

Features

• Constructed from high-quality materials
• Oil Feed Thread: 7/16-24
• Oil Drain Size: GT style (part # IS-GTDRN)
• Wheel Specs:
• Comp: IND 58mm, EXD 76mm
• Turbine: IND 68mm, EXD 62mm
• Compressor Housing: .60AR
• Inlet: 4.0″
• Outlet: 2.0″
• Turbine housing: T3 choice of .64 or .82
• Turbine Discharge Flange: 90mm Vband
• Flange part # (IS-FLA-090MM)
• Clamp part # (IS-CL-090MM)

Applications

• Universal

What’s In The Box?

• 1 – RSX3576 Turbo

Warranty

• ISR’s Standard Limited Warranty
