Radium Engineering Fuel Cell Subharness Kit

The fuel cell subharness kit is a great addition for quicker pit stops. It is common for racers to have a spare drop-in FCST-X fuel pump module in the pit in case there is an issue with a fuel pump, electrical wiring, etc. With a subharness on both FCST-X units, the entire pump assembly can be swapped quicly without any tools.

RADIUM ENGINEERING FCST-X (or FCST): Each of the 26 preterminated 10awg wires has a unique identification labels associated with the FCST-X labeling. However, they can still be used with the older FCST that has slightly different labeling.

RADIUM ENGINEERING RA-SERIES FUEL CELLS: Designed specifically to mount on the perimeter of RA-Series Fuel Cells. For another fuel cell to be directly compatible, the bolt spacing must be 3.6″-5.7″ (91-145mm). The bolt hole distance of the bulkhead mount is compatible with all Radium Engineering RA-series fuel cells. It can be mounted anywhere along the perimeter of the fuel cell. Furthermore, the mount can be rotated inwards or outwards for a 3in (76mm) location difference.

Applications

• Universal FCST
• Universal FCST-X
• Universal RA-Series

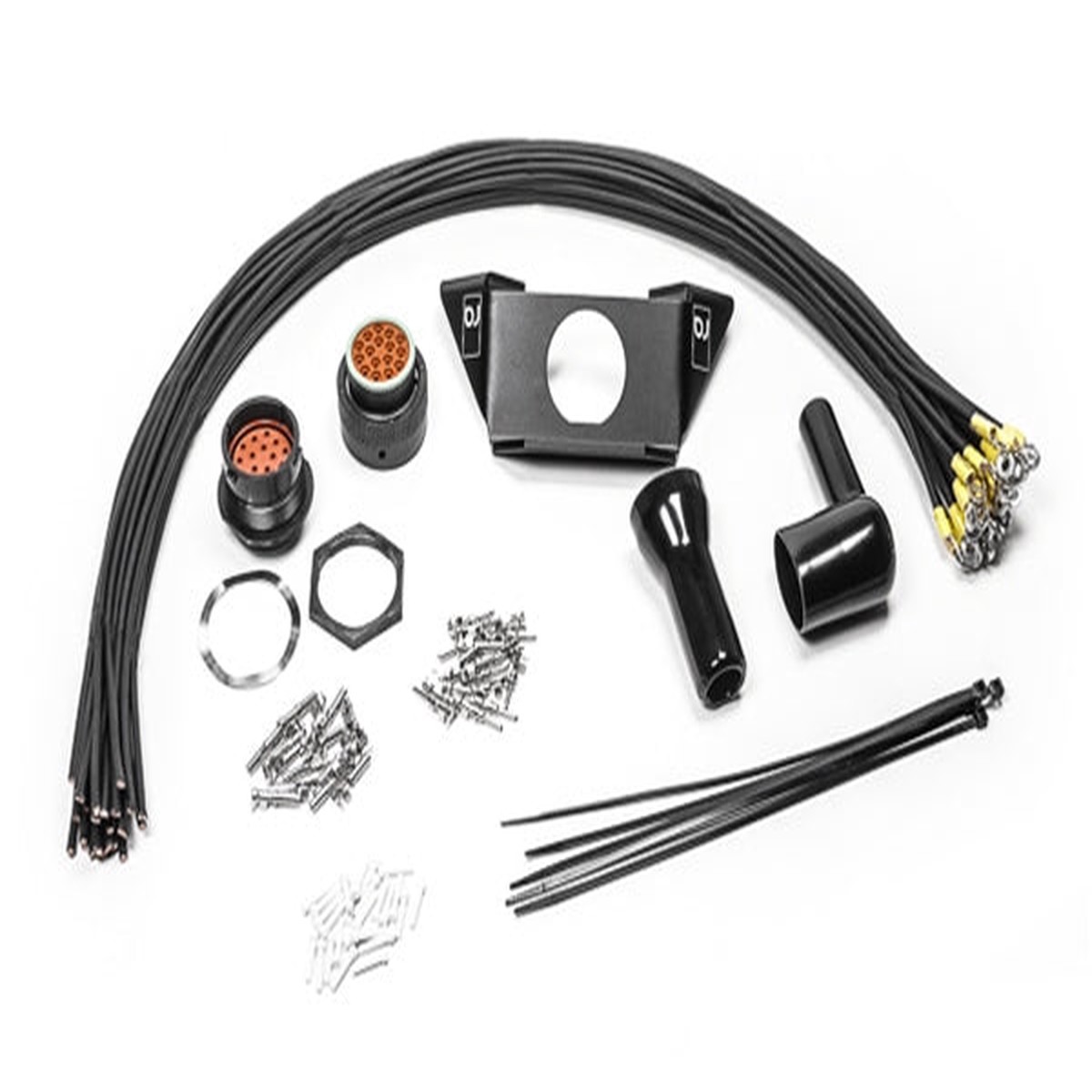

What’s In The Box?

• 1 – Anodized aluminum fuel cell mounting bracket
• 1 – Environmentally sealed female CPC bulkhead connector
• 1 – Environmentally sealed male CPC connector
• 16 – Stamped 14-10awg open barrel female contacts
• 16 – Stamped 14-10awg open barrel male contacts
• 1 – Black rubber boot, straight
• 1 – Black rubber boot, right angle
• 1 – Bulkhead panel hex nut
• 1 – Bulkhead locking wave washer
• 25 – Plugs for empty cavities
• 5 – Cable zip-ties
• 26 – Labeled 10awg wire with preterminated ring terminals

References

• Installation Instructions

Warranty

• Limited Manufacturers Warranty
