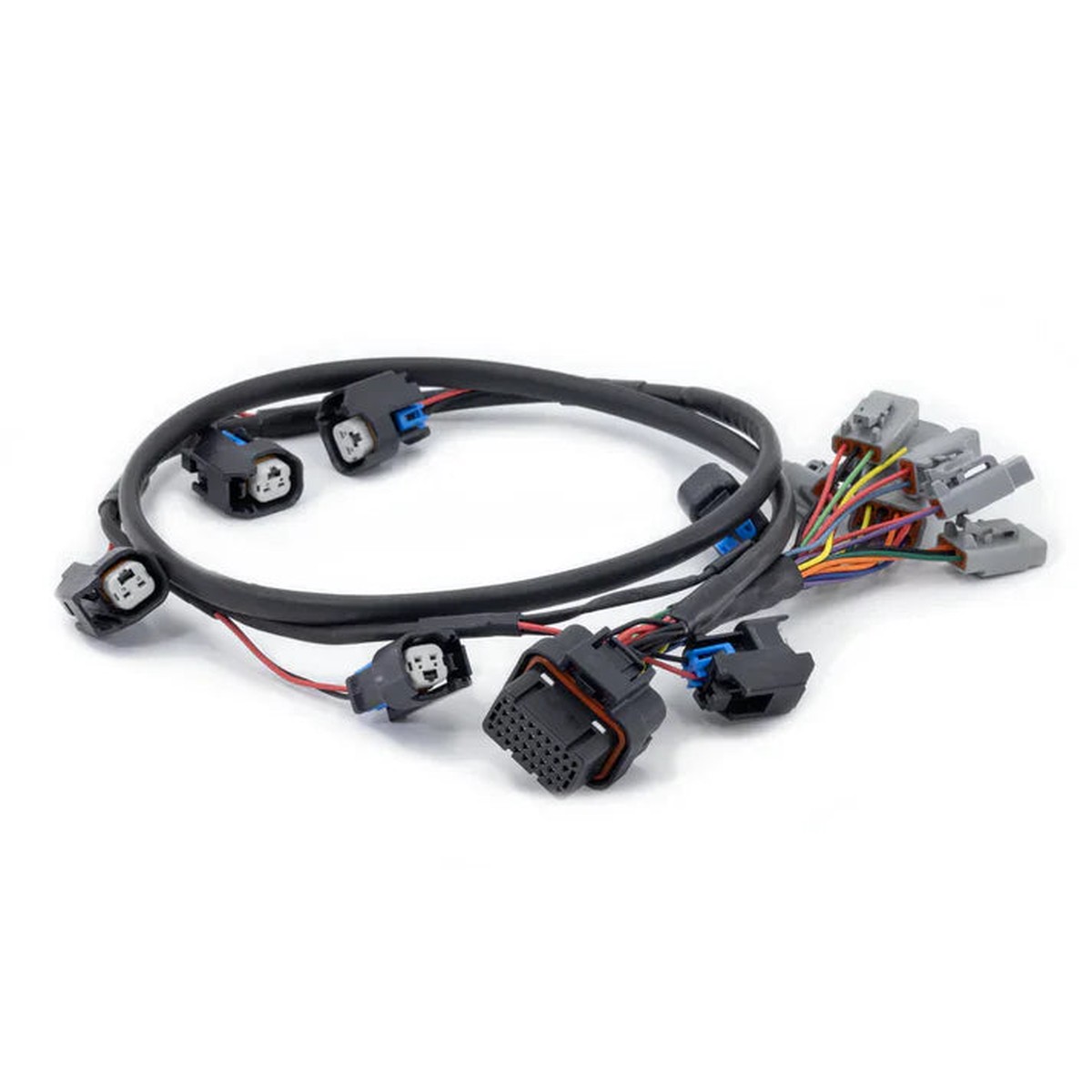

The ReFlex+ complete harness is broken into two portions. TheMain Injector Harnessand theInstallation Harness. The Main Injector Harness consists of the following components:

• Port injection harness for Inline-6 engines with EV6 / USCAR injector connectors
• DTM 3-Pin connector for an ethanol content sensor connection using theReFlex+ Plug-n-Play Ethanol Sensor Harness
• 2x DTM 2-Pin connectors to connect to external sensors like theReFlex+ 0-10 Bar Pressure Sensor
  • Fuel Pressure
  • Coolant Pressure
  • Exhaust Back Pressure
  • Oil Pressure
• DTM 3-Pin connector for a 0-5v sensor
• DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
• 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit
• DTM 8-Pin connector for easy connection to your choice ofReFlex+ Install Harnesses

This harness works for both the ReFlex+ and ReFlex PRO.

Perfect fitment forBMW Engine Models:N54 / N55 / S55 / B58 / S58
